Universal Engine Oil Cooler Plate and Fin 280 x 256 x 37mm (28 Row) suits 9" SPAL Fan, Temp Switch Boss
Couldn't load pickup availability
Product details
- SKU PWO5933-6-K
PWR Europe Website Shipping Policy
We pride ourselves on providing you with the very best delivery service for your PWR Consignment and we work closely with our logistics partners who will ensure your goods arrive safely and in good time.
An automated email will be sent to you, to confirm shipping and tracking information, once the order has shipped. Please use these tracking details when looking to ascertain a delivery date/time.
All orders, for stock items, will be shipped the same day if ordered before 12:00 noon. For orders placed after 12:00 they will be shipped the next working day.
PWR will contact you via phone/email in instances where orders are placed for items that are not in stock when the lead-time will be over 7 days.
UK Shipping Guide
- For Mainland UK PWR use Royal Mail.
- UK Mainland shipping times are generally next working day however there are instances where this cannot be achieved. PWR cannot be held responsible for this occurrence.
UK Non-Mainland & European Shipping Guide
- For Non-Mainland UK & Europe PWR use both TNT.
- UK Non-Mainland & European shipping can be up to 5 working days and there are instances where this cannot be achieved. PWR cannot be held responsible for this occurrence.
Custom Duties & VAT
- The PWR website gives you product pricing including and excluding VAT.
- If you are purchasing goods from within the UK, you will be charged VAT at the current rate.
- If you are purchasing goods from outside the UK, you will not be charged VAT.
- If purchasing from outside the UK, you will be charged duty and VAT on the goods you have purchased from PWR as they enter your country. It will be the responsibility of the purchaser to make sure these extra charges are paid on entry into the importing country.
Engine Oil Cooler - Plate and Fin 280 x 256 x 37mm (28 Row) suits 9" SPAL Fan, Temp Switch Boss
PRODUCT DETAILS
- Universal fitment for easy installation
- Powder-coated black for corrosion resistance
- High heat transfer
- Low-pressure drop
- State-of-the-art controlled atmosphere brazing process
- Pressure tested and guaranteed (600psi burst rating)
- 1 Year-manufactured warranty
- 100% Australian made
PWR can custom-make to your requirements. Please let us know if you would like thermo fan mounts, fan shrouds, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 01327 362940 or email sales@pwreurope.com for a quote.
SPECIFICATIONS
- Aluminium
- Powder Coated Black
-

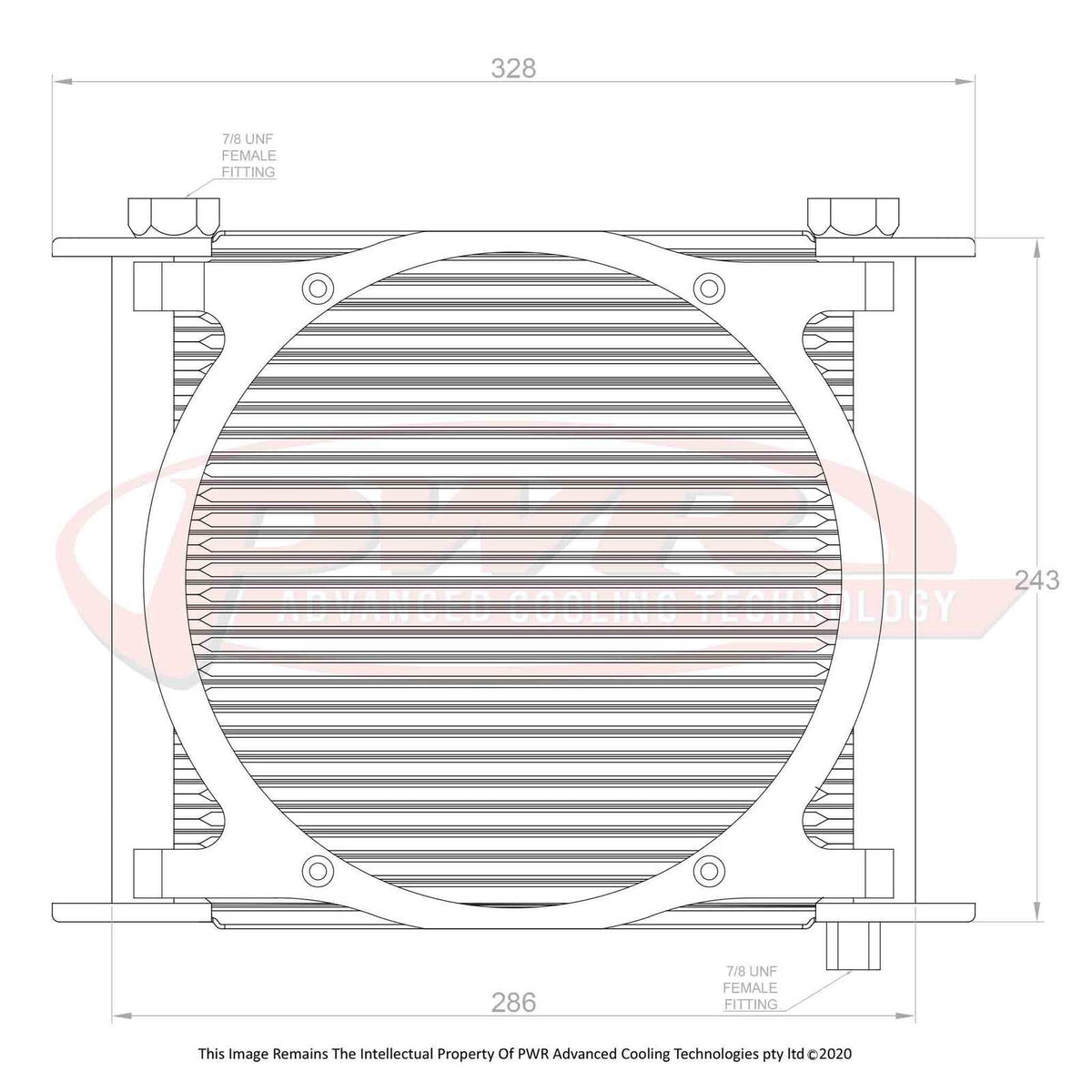

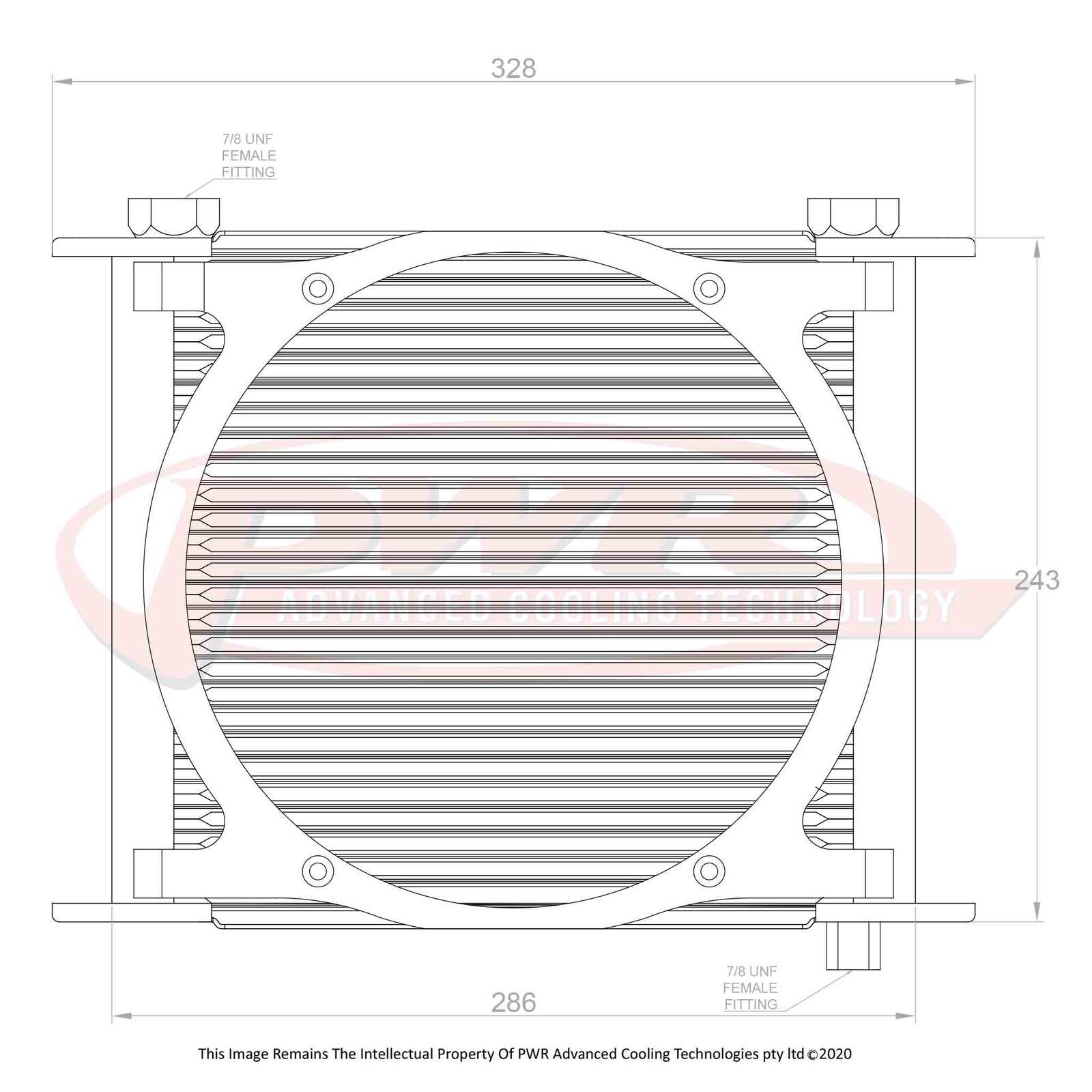

280 x 256 x 37mm
- Plate and Fin
-
Universal Fitment
- 28 Row
WHAT'S INCLUDED
-
1 x Universal Engine Oil Cooler
- 2 x -10 ORB to -10AN Male Fittings
- 2 x -12 ORB to -10AN Male Fittings
- 2 x Rubber O-rings
COMPATIBILITY
- Universal Heavy Duty
Modern engines run higher oil temperatures and rely on engine oil to assist the water system in cooling the engine. PWR’s patented plate and fin engine oil coolers are made from 100% aluminium construction which allows the cooler to be made strong, lightweight and compact while offering high heat transfer and powder coated for corrosion resistance. The plate design turbulates the oil flow and in conjunction with the unique louvered fin design provides unequalled heat rejection while offering very low-pressure drop. Manufactured with a 37mm core, these coolers are perfect for engine oil cooling, heavy-duty automatic transmission cooling, power steering and differential cooling for race and road applications. All coolers come standard with Dash -10 AN & Dash -12 AN male adapters with Dash -6 AN & Dash -8 AN being alternative options. Custom versions can be special ordered with thermo fan mounts with or without thermo switch bosses.
ADDITIONAL ITEMS:
- SKU: PWAC09SK - 09" Fan Skew Blade Pull 12V (602CFM) (52mm Deep) - Price: £189.00
- SKU: PWAC09SKP - 09" Fan Skew Blade Push 12V (590CFM) (52mm Deep) - Price: £189.00
- SKU: PWA6529 - Fan Legs x 4 (Plastic) - Price: £19.99
- SKU: TFS133 - Thermo Switch 90C On / 85C Off (2 wires) M16 x 1.5 Thread - Price: £59.99
- SKU: TFS156 - Thermo Switch 85C On / 80C Off (2wires) M16 x 1.5 Thread - Price: $64.99
