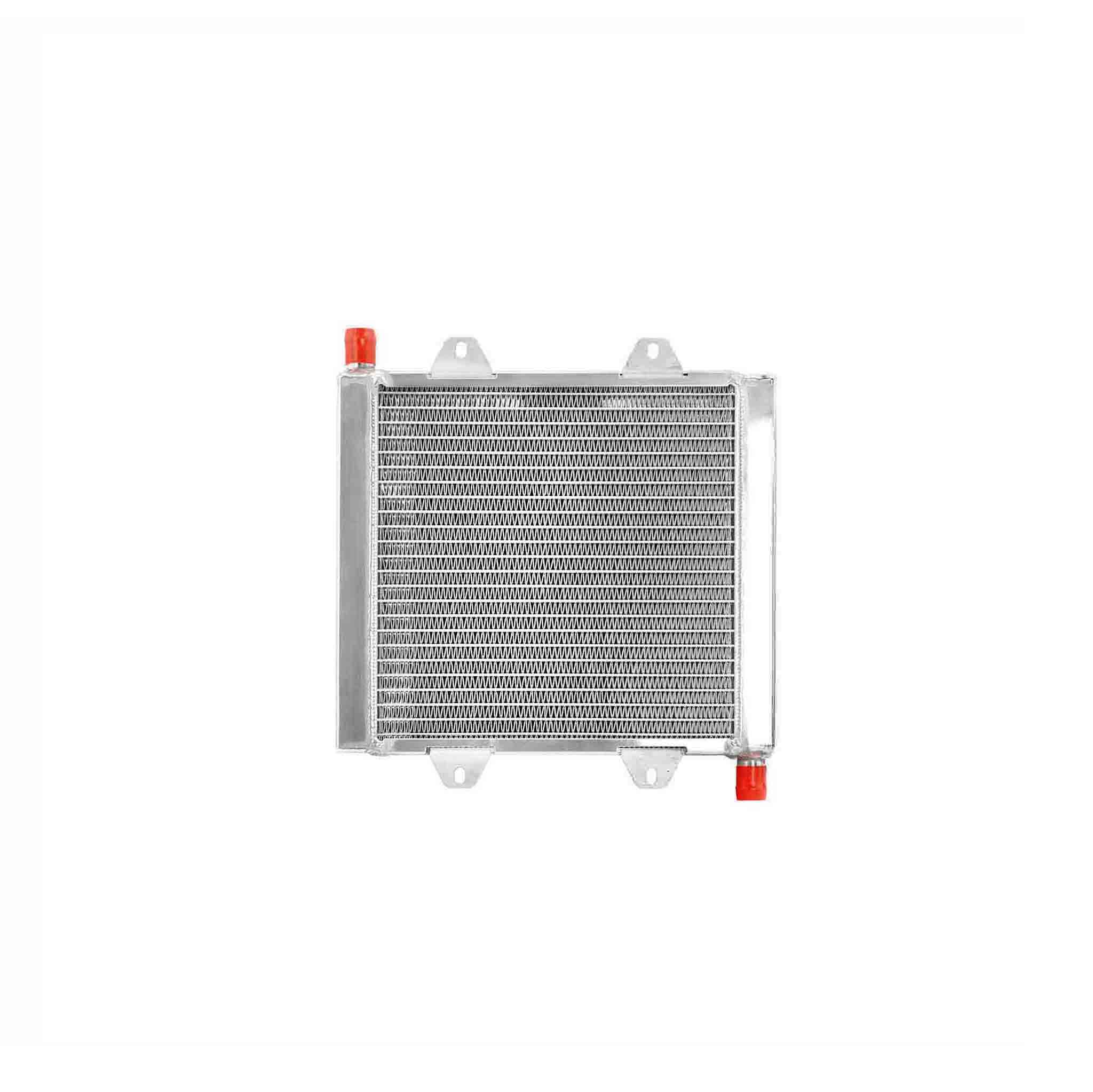

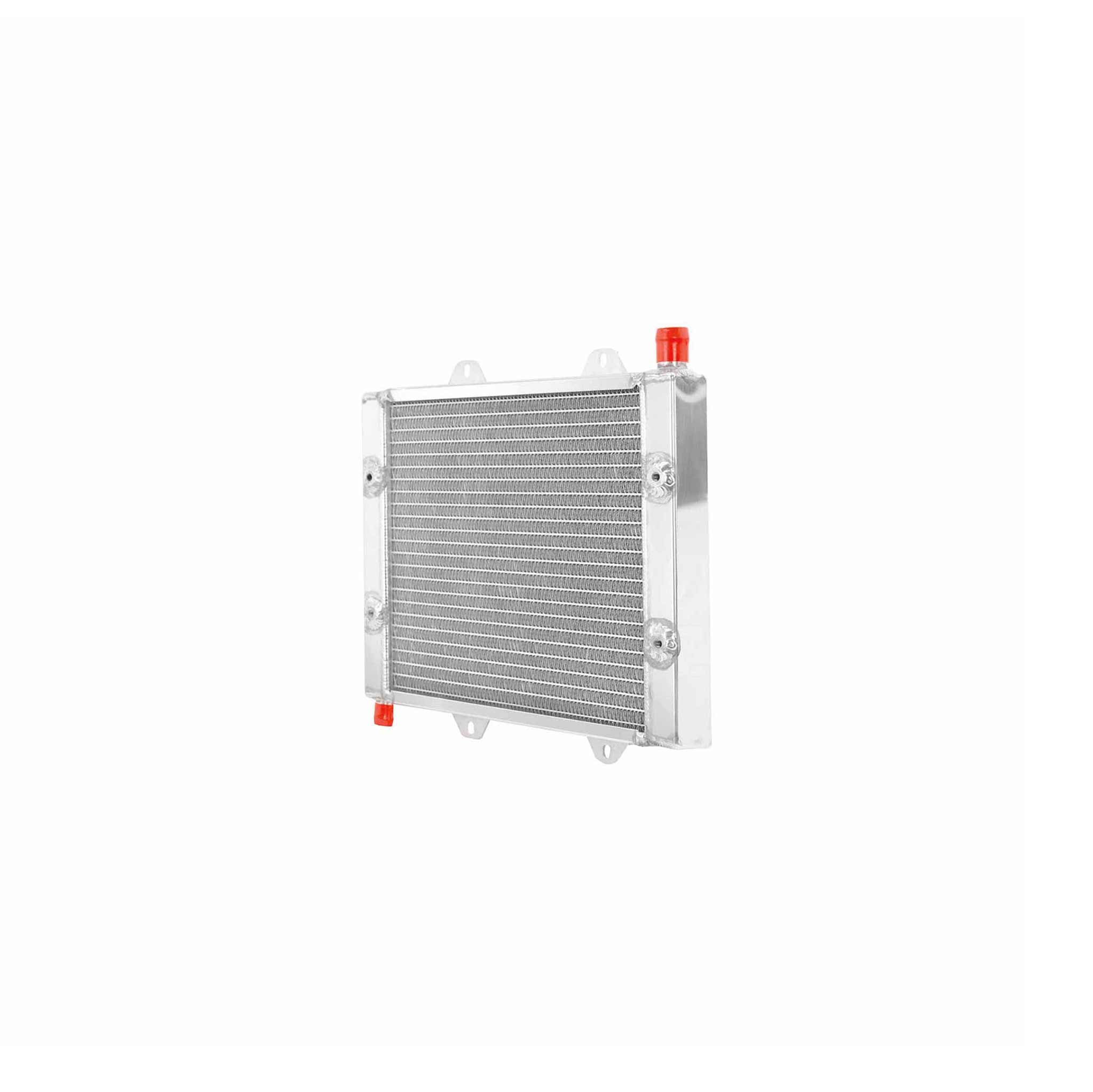

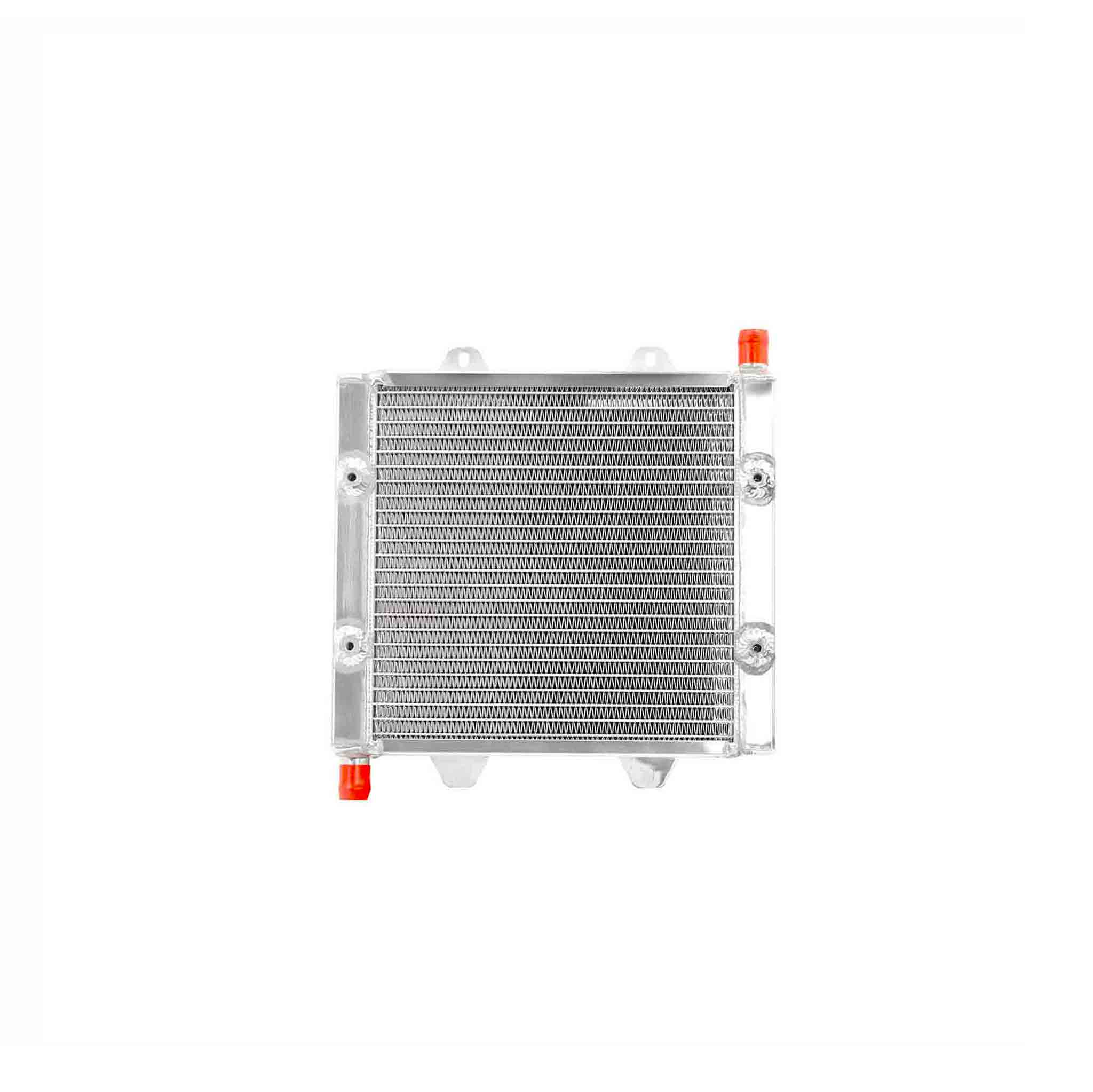

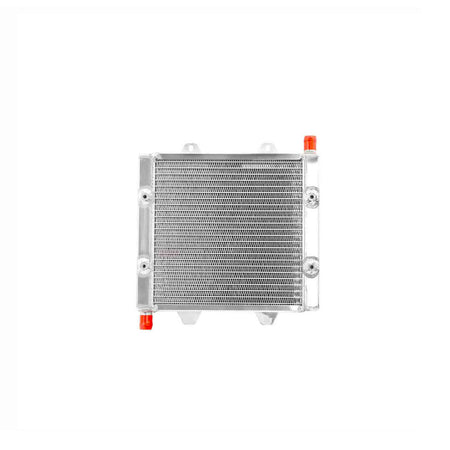

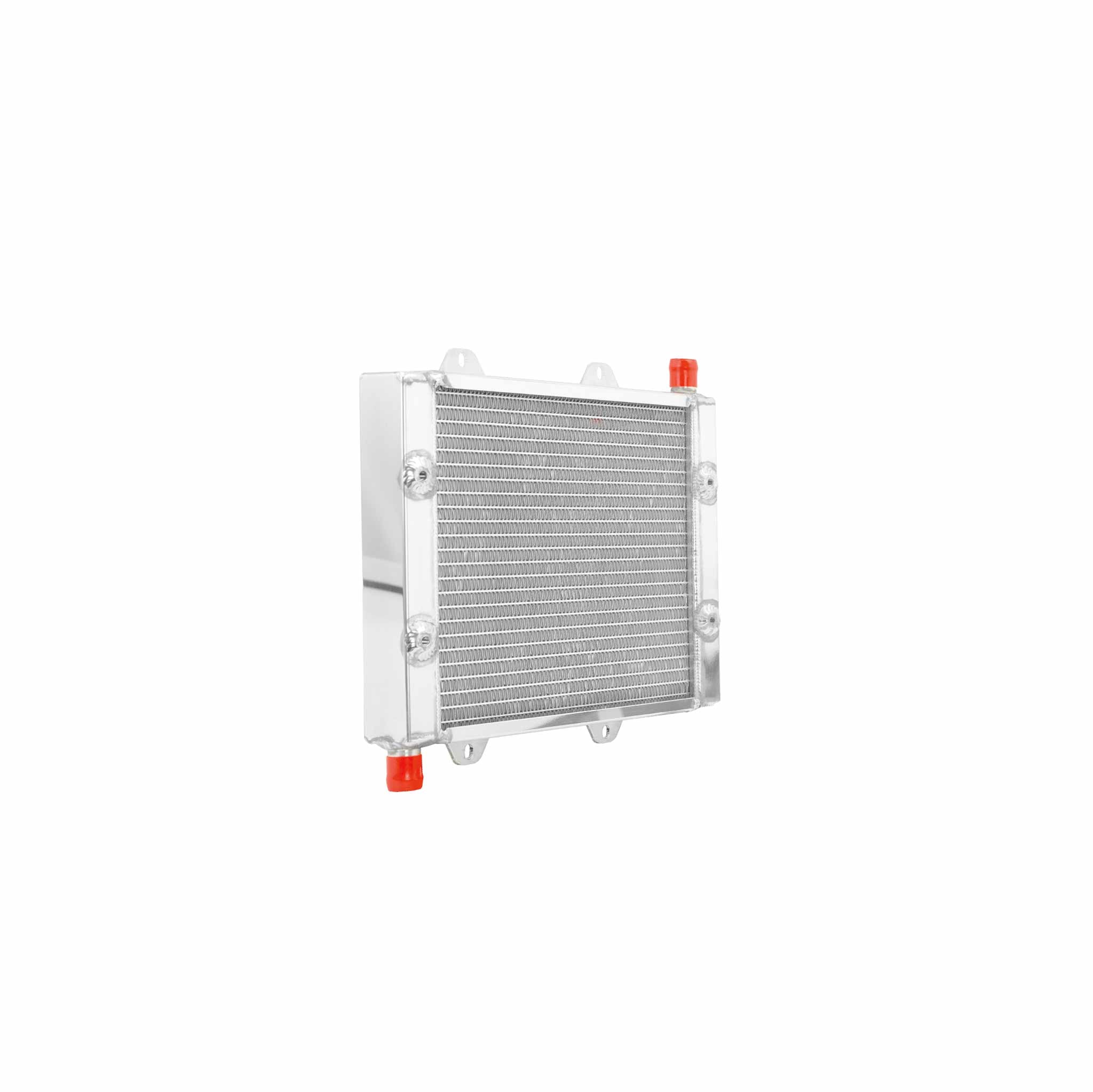

Universal 9" Square 26mm Heat Exchanger

In stock
SKU: PWH2316
£299.00 inc. VAT

Product details

  • SKU PWH2316

PWR Europe Website Shipping Policy

We pride ourselves on providing you with the very best delivery service for your PWR Consignment and we work closely with our logistics partners who will ensure your goods arrive safely and in good time.

An automated email will be sent to you, to confirm shipping and tracking information, once the order has shipped. Please use these tracking details when looking to ascertain a delivery date/time.

 All orders, for stock items, will be shipped the same day if ordered before 12:00 noon. For orders placed after 12:00 they will be shipped the next working day.

 PWR will contact you via phone/email in instances where orders are placed for items that are not in stock when the lead-time will be over 7 days.

UK Shipping Guide

  • For Mainland UK PWR use Royal Mail.
  • UK Mainland shipping times are generally next working day however there are instances where this cannot be achieved. PWR cannot be held responsible for this occurrence.

 UK Non-Mainland & European Shipping Guide

  • For Non-Mainland UK & Europe PWR use both TNT.
  • UK Non-Mainland & European shipping can be up to 5 working days and there are instances where this cannot be achieved. PWR cannot be held responsible for this occurrence.

 Custom Duties & VAT

  • The PWR website gives you product pricing including and excluding VAT.
  • If you are purchasing goods from within the UK, you will be charged VAT at the current rate.
  • If you are purchasing goods from outside the UK, you will not be charged VAT.
  • If purchasing from outside the UK, you will be charged duty and VAT on the goods you have purchased from PWR as they enter your country. It will be the responsibility of the purchaser to make sure these extra charges are paid on entry into the importing country.

Please read our Returns & Warranty Policy

Description Fitment Shipping Policy

Universal 9" Square 26mm Heat Exchanger

PRODUCT DETAILS

  • Varied core combinations using 26, 32, 42 & 55mm tubes
  • Revolutionary fin pitch from 10-22FPI and louver angles
  • R-fin upgrade options
  • World class TIG welding by our passionate fabricators
  • State of the art controlled atmosphere brazing process
  • All items CAD designed to meet ISO9001 International standards for repeatability
  • Race and street proven performance backed by comprehensive wind tunnel testing
  • Pressure tested and guaranteed
  • 1 Year manufactured warranty
  • 100% Australian made

PWR Heat Exchanger radiators or LTR (low temperature radiator) are commonly used to intercool in-manifold water cooled supercharger and turbocharger systems with dedicated electric water pumps circulating the coolant. They typically feature wide single rows of tube with either standard profile or closemesh fin configurations for maximum flow & cooling efficiency tailored to street or track conditions. Barbed fittings or male threaded Dash AN fittings are available and all manufactured by hand in our state-of-the-art facilities on the Gold Coast. Each PWR heat exchanger radiator will deliver the highest levels of quality, consistent durability, strength and performance exceeding the highest levels of customer expectation..

SPECIFICATIONS

  • Aluminium
  • Polished
  • 291 x 250 x 40mm
  • Rolled Dimple Tube & Fin
  • 19mm Outlets

WHAT'S INCLUDED

  • Rolled Dimple Tube & Fin Heat Exchanger

COMPATIBILITY

  • Universal

ADDITIONAL ITEMS

  • Radiator Cap Small 16psi No Lever - SKU: 10233
  • Electric Water Pump 37L/Min (Brushless) - SKU: PWRPMP19

PWR can custom-make to your requirements. Please let us know if you would like thermo fan mounts, fan shrouds, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 01327 362940 or email sales@pwreurope.com for a quote.
